Introduction
Dye ingress testing continues to be used as a qualitative method for assessing container closure integrity (CCI) in prefilled syringes and other parenteral systems. While intuitive, the method relies on a multi-stage process that introduces variability. This paper examines the physical and mechanical properties of the dye ingress leak test for parenteral applications, specifically pre-filled syringes.
Burrell et al. (2000) and Wolf et al. (2009) demonstrate that effective dye ingress testing relies on two fundamental requirements:
- A pressure differential can be created across the container wall capable of driving dye into the container.
- That differential is preserved long enough to allow ample dye to flow through a defect of interest.
In liquid-filled syringes, the physical system is dominated by viscous resistance, capillary effects, and plunger movement. These factors fundamentally alter the behaviour of dye ingress. This study demonstrates that dye ingress testing operates within a narrow and often unstable operating window that collapses with increasing product viscosity, decreasing defect size, and increasing syringe diameter. These findings challenge the suitability of dye ingress as a robust CCI method for high-risk parenteral applications.
Dye Ingress as a Three-Phase Process
For dye ingress to occur in a liquid-filled syringe, three distinct phases must be successful:
Phase 1: Differential Formation
During the vacuum dwell portion of the test, air or liquid must exit the container through a defect, lowering internal pressure relative to the external environment.
Phase 2: Dye Ingress
Upon return to atmospheric pressure, the external dye solution must be driven through the defect by the preserved pressure differential and contaminate the container contents.
Phase 3: Detection
Following the physical manipulation of the sample in Phases 1 and 2, the operator must be able to visibly detect the blue dye.
Failure of any phase results in a negative dye ingress outcome, regardless of whether a defect is present. Experimental reviews have demonstrated poor and inconsistent detection of engineered defects consistent with the narrow operating window (Wolf 2009).
Start with the Outcome

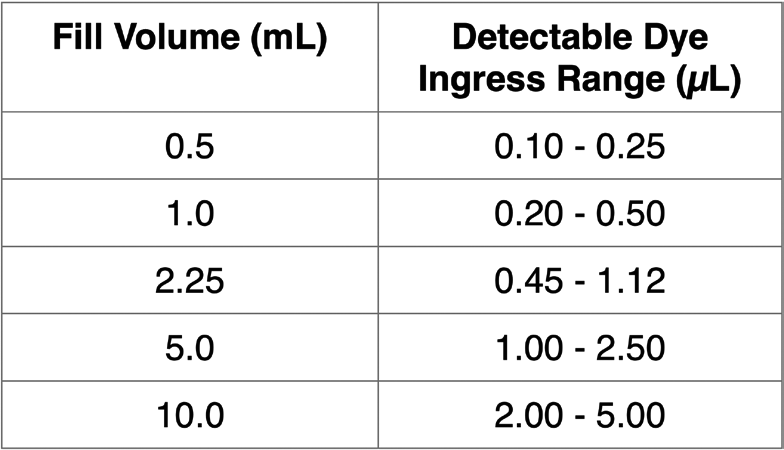

Most commonly referenced dye ingress protocols historically used 0.1% aqueous methylene blue solutions (≈1000 ppm) as a visual detection medium. For methylene blue, the literature indicates that visible detection limits in clear aqueous systems typically fall in the range of approximately 0.2–0.5 ppm, depending on lighting conditions, observer variability, and container geometry. Based on dilution of a 0.1% methylene blue dye bath to this internal detectability threshold, approximately 0.2–0.5 µL of dye solution must ingress into a 1 mL syringe fill volume to produce a detectable signal, assuming uniform mixing.
This can then be modeled to determine how dye ingress can perform in detecting micro defects in a prefilled syringe. The following analysis applies parameters drawn from published dye ingress studies and standard historical industry practice.
Phase 1:Differential Formation, Establishing an Internal Pressure Deficit
During the Differential Formation phase, vacuum is applied to the samples while they are fully submerged in dye using a test fixture designed to restrain plunger stopper and/or syringe components.
Under vacuum, any headspace present within the syringe expands as internal pressure exceeds external pressure. By preventing outward plunger movement, a partial pressure differential between the internal and external environments is maintained, thereby establishing the driving force necessary to promote product or air egress through any existing defects. If outward plunger movement is not restricted, plunger movement may equalize the pressure and conditions governing Phase 2 of the method are compromised, rendering the test ineffective. An extremely important but often overlooked requirement is that headspace must be present within the container for this phase to be effective.
