Introduction
Part I of this analysis demonstrated that dye ingress testing in liquid-filled syringes operates within a narrow
and unstable operating window defined by competing physical requirements. Differential Formation (Phase 1)
requires a sufficiently large pressure differential to overcome viscous resistance and drive fluid or gas out of the
container through a micro-defect, while Dye Ingress (Phase 2) requires that this differential be preserved long
enough to convey dye into the container without being mechanically relieved by plunger motion. As product
viscosity increases and syringe diameter grows, these requirements become increasingly incompatible.
Part II builds directly on this foundation by converting the qualitative collapse of the operating window into a
quantitative feasibility boundary. Specifically, this section solves for the maximum product viscosity at which
dye ingress remains physically capable of producing a detectable result, given realistic constraints on defect
size, pressure differential, plunger mechanics, and detection sensitivity. In doing so, this analysis demonstrates
that dye ingress limitations are not just probabilistic but also have defined viscosity and volume dependent
limitations.
Experimental Context: Wolf et al. as Confirmation
The seminal study by Wolf et al. (2009) provides experimental confirmation of physical constraints. In that work,
syringes containing laser-drilled defects of 5–15 μm were evaluated using pharmacopeial dye ingress methods
and compared to deterministic techniques. Despite using water for injection, the lowest common viscosity of
any pharmaceutical fill medium, dye ingress failed to reliably identify known defects.
If dye ingress struggles to achieve consistent detection at approximately 1 mPa·s, then formulations with
viscosities an order of magnitude higher will have a significantly narrower operating window. The variability
observed by Wolf et al. reflects proximity to the feasibility boundary.
Detection as a Mass-Balance Requirement
A critical but often underappreciated constraint is that dye ingress requires that a minimum physical volume of
dye solution enter the container to produce a visible or measurable signal.
Most pharmacopeial dye ingress protocols employ a 0.1% methylene blue concentration (≈1000 ppm). Under
manual visual inspection, practical detection limits for methylene blue in clear aqueous systems are typically
reported in the range of 0.2–0.5 ppm (Wolf 2009). This establishes a straightforward dilution relationship: the
detectable internal concentration is proportional to the fraction of external dye solution that enters relative to
the internal fill volume.
Rearranging this relationship yields the minimum ingress volume required for detection. For a 1 mL fill,
approximately 0.2–0.5 μL of dye solution must enter the container to reach the detection threshold. Larger fill volumes require proportionally more ingress, while smaller fills require proportionally less. This relationship is
linear and unavoidable.
Detection therefore defines a hard lower bound on the amount of internal volume displacement that must occur
across Phases 1 and 2. If insufficient volume is displaced to support this ingress, the test will remain below the
detection threshold regardless of defect presence. Because this analysis assumes ideal mixing and equilibrium,
it systematically underestimates the ingress volume required for detection in real syringe systems.
As established in Part I of this article, plunger movement imposes a mechanical ceiling on the pressure differential
that can be sustained during the Dye Ingress phase. This ceiling defines the maximum test vacuum and is strongly
dependent on syringe diameter, as shown in Appendix I.
Viscosity Governs Differential Formation Capacity
For a fixed defect size, dwell time, and applied vacuum, the total volume displaced during Phase 1 decreases
rapidly as product viscosity increases. Under best-case assumptions - a smooth, cylindrical 10 μm defect,
Newtonian fluid behavior, and a sustained pressure differential—Hagen–Poiseuille flow predicts that water-like
fluids can displace microliter-scale volumes over typical dwell times. In contrast, modern biologic formulations
with viscosities in the range of 10 to 50 mPa·s displace orders of magnitude less volume under the same
conditions.
This has direct implications for detectability. As viscosity increases, the internal vacuum that can be generated
during Phase 1 decreases because less volume has leaked from the container. Consistent with Poiseuille-based
transport predictions, Burrell et al. (2000) observed that increasing dye concentration increased viscosity and
reduced the dye ingress test sensitivity rather than improving it. Once the displaced volume falls below the
minimum volume required to support detectable dye ingress, the method becomes ineffective. The model,
under the stated assumptions, represents a best-case scenario for dye ingress performance.
Solving for Viscosity: Defining the Feasibility Boundary
Fill volume, syringe diameter, and product viscosity play distinct but tightly coupled roles in determining whether
dye ingress testing is feasible.
Fill volume establishes the volume of dye needed to enter the container to reach a detectable internal
concentration, and that required ingress volume scales linearly with the amount of liquid already present.
Syringe diameter establishes the maximum pressure differential that can be sustained without plunger
movement, which increases with syringe inner diameter; larger diameters must therefore operate with lower
differential pressure.
Viscosity governs transport between these bounds by controlling how much fluid can be displaced through a
defect during the available dwell time for a given pressure differential. Dye ingress is feasible only in the narrow
region where the constraints align to allow the required amount of dye ingress, and once any one of these
constraints is broken, the operating window collapses.
These constraints can be combined to solve for the maximum allowable product viscosity at which dye ingress
remains feasible for a given syringe inner diameter.
For a fixed target defect size (10 μm), vacuum dwell time, dye concentration (0.1%), visual detection threshold
(0.5 ppm), and typical plunger break-loose force (4.5 N) a viscosity threshold can be calculated. The pressure
required to transport the minimum detectable dye volume can be equated to the pressure threshold for plunger
movement, establishing a viscosity threshold for specific syringe inner diameters and fill volumes.

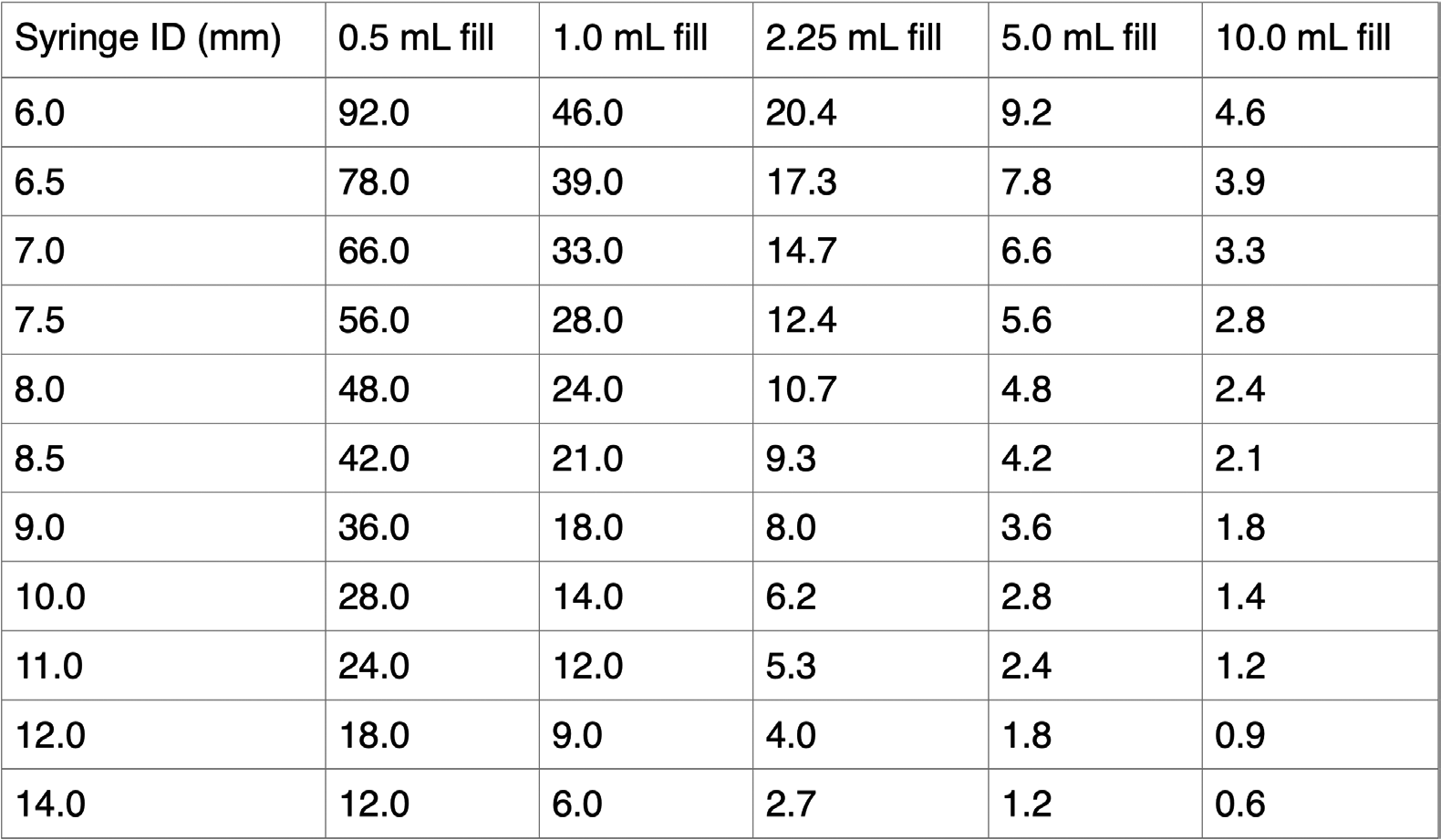

Table 1. Theoretical viscosity limit (mPa·s)
Syringe geometry and product fill level determine the limiting product viscosity for feasible dye ingress test performance.
The resulting viscosity limits decrease sharply with increasing syringe diameter and fill volume. Beyond these
limits, any combination of vacuum level or dwell time will not meet both the transport requirement and the
mechanical stability requirement simultaneously. Once viscosity exceeds the solved boundary, dye ingress is
outside the feasible operating window to function as a container closure integrity test.
