Bottles and Containers Leak Testing

Bottle leak testing is what guarantees container quality. Some of the most common bottles are for juices, milk and dairy products, carbonated soft drinks, water, energy drinks, dressings, sauces, oils, household cleaning products and much more. In order to ensure the quality of these products bottle leak testing is performed to check that each bottle will not leak.

VeriCon Inspection Systems – Bottle and Container Leak Testers

VeriCon inspection systems is a complete line of leak testers for empty bottles and containers. To accommodate various container specifications, line speed, handling and test sensitivity requirements, VeriCon systems are obtainable in configurations including linear leak testing, continuous motion leak testing, and trimmer units for indexing installations. All VeriCon systems make use of high-resolution non-drifting transducers (either pressure transducers or vacuum transducers) for consistent leak detection. The PTI bottle leak testing technologies are distinctive in both reliability and performance. PTI offers a finished line of VeriCon inspection systems for online leak detection of bottles and containers for the blow molding, injection molding, food & beverage industries. VeriCon Inspection systems include reject statistics and test result trends, permitting for on demand analysis of container quality.

  • The most reliable and robust Trimmer Mount Leak Testers - single and dual station units. PTI’s VeriCon 126+/TR is a robust leak test system that operates 24/7 without loss of sensitivity and requires minimal maintenance. Real time inspection data involves reject statistics and test result trends, authorizing for an on-demand analysis of container quality, with enhanced data collection and data transfer capability.
  • Linear and Continuous Motion Leak Testers – single and multi-station testers with inspection speeds up to 150 bottles/minute. There are three types of test:
    • VeriCon 135+
    • VeriCon 172
    • VeriCon 175

VeriCon’s Benefits and Features:

  • High-resolution non-drifting transducers (either pressure transducers or vacuum transducers) for consistent leak detection
  • Repeatable results with accuracy of leak testing.
  • Uncomplicated touch screen interface
  • 24/7 operations
  • Extremely low maintenance and easy to maintain
  • Potential to put up various container specifications, line speed, special handling and test sensitivity requirements

Leak tester for plastic bottles

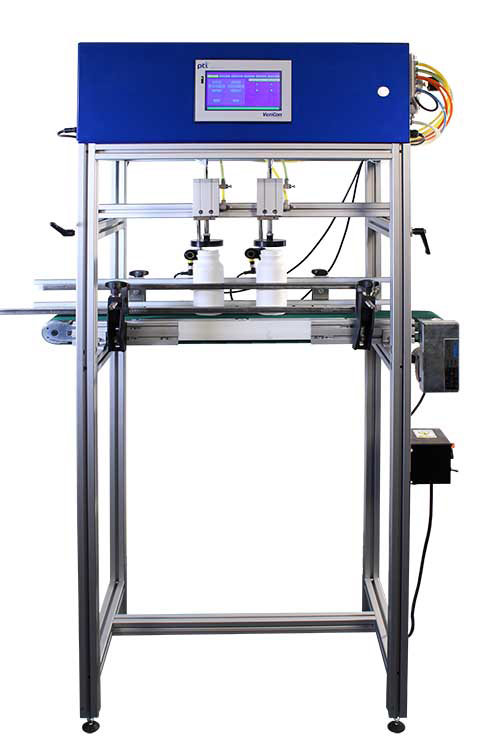

VeriCon 126+ inline bottle leak tester

VeriCon 126+ Online Bottle Leak Testing – Easy Plug & Play Installation

The VeriCon 126+ is a highly robust inline linear leak test system that operates 24/7 without loss of sensitivity and requires minimal maintenance. Available in either one or two station configurations, it is very flexible and can be easily installed on many different conveyor systems. The 126+ is operator friendly and now offers several new-to-market upgrades and enhancements. Real time inspection data includes reject statistics and test result trends, allowing for on demand analysis of container quality, with enhanced data collection and data transfer capability. This data transfer capability allows production data to be viewed live on the plant floor or monitored at the headquarter level.

The VeriCon 126+ offers increased leak test sensitivity with the capability to measure down to 200 microns, depending on container shape, size and line speed.

VeriCon 126+ Benefits:

  • 24/7 operation
  • Reliability
  • Sensitivity
  • Versatility
  • Data Integration & Data Transfer
Vericon Technology:

The VeriCon 126+ leak test system utilizes pressure decay technology and features a new PLC with increased test sensitivity. During the test cycle, the container is filled with pressure to a certain level. The amount of pressure decay is monitored and measured which correlates to the presence of leaks within the container. The pass/fail result displays on the operator panel and the defective container is rejected from the line.

Specifications
Application Leak Testing bottles & containers for linear conveyor mount configurations
Technology Pressure
Test Stations 1 to 2 Stations
Bottle Size Range Up to 5 gallon
Inspection Rate

1 Station – up to 60 bottles/minute

2 Station – 100+ bottles/minute

Hole Size Detection* Capable of finding 0.008" [200 microns], depending on container shape, size and line speed.
Operator HMI Interface Large color touch screen panel
Mount Over Existing Conveyor Flexible, can be used with many different conveyor systems
PTI Integrated Conveyor Optional string belt conveyor
Test Sensitivity Adjustment Yes
Test Result Data/Test Statistics Total pass/reject statistics
Auto Reject Mechanism Yes
Data Collection Production data collection with data transfer capability
126+ Tester Frame Four-post heavy-duty aluminum frame
Air 60-90 psi
Power 100-240 VAC; 50/60 cycles
*Test results may vary according to application, container specifications and line speed.

PTI VeriCon 126+ Brochure
PTI Article in Plastics Journal of Blowmolding

VeriCon 126+ trimmer mount bottle leak tester

VeriCon 126+ Trimmer Mount Leak Testers for Blowmolding Lines

PTI’s VeriCon 126+ offers easy plug & play leak testing solutions for inline container testing and for blowmolding lines with trimmer mount configuration.

The VeriCon 126+/TR is a robust leak test system that operates 24/7 without loss of sensitivity and requires minimal maintenance. The VeriCon 126+ is available with one or two stations and offers several new-to-market upgrades and enhancements. Real time inspection data includes reject statistics and test result trends, allowing for on demand analysis of container quality, with enhanced data collection and data transfer capability.

View production performance and test results in the plant or at the corporate headquarter level, live in real time. The VeriCon 126+ offers increased leak test sensitivity with the capability to measure down to 200 microns, depending on container shape, size and line speed.

Benefits:

  • Reliability
  • Sensitivity
  • Versatility
  • 24/7 operation
  • Data Integration & Data Transfer

VeriCon Technology

The VeriCon 126+ leak test system utilizes pressure decay technology and features a new PLC with increased test sensitivity. During the test cycle, the container is filled with pressure to a certain level. The amount of pressure decay is monitored and measured which correlates to the presence of leaks within the container. The pass/fail result displays on the operator panel and the defective container is rejected from the line.

VeriCon 126+/TR Specifications

Application Leak Testing bottles & containers for trimmer mount installation
Technology Pressure
Test Stations 1 to 2 Stations
Bottle Size Range Up to 5 gallon
Inspection Rate

1 Station – up to 60 bottles/minute

2 Station – 100+ bottles/minute

Hole Size Detection* Capable of finding 0.008" [200 microns], depending on container shape, size and line speed.
Operator HMI Interface Large color touch screen panel
Mount Over Existing Conveyor Flexible, can be used with many different conveyor systems
PTI Integrated Conveyor Optional string belt conveyor
Test Sensitivity Adjustment Yes
Test Result Data/Test Statistics Total pass/reject statistics
Auto Reject Mechanism Yes
Data Collection Production data collection with data transfer capability
126+ Trimmer System Control cabinet mounts to horizontal trimmer system frame with test heads, cylinders and hose connections.
Air 60-90 psi
Power 100-240 VAC; 50/60 cycles
*Test results may vary according to application, container specifications and line speed.

PTI VeriCon 126+ Brochure

Leak tester for plastic bottles

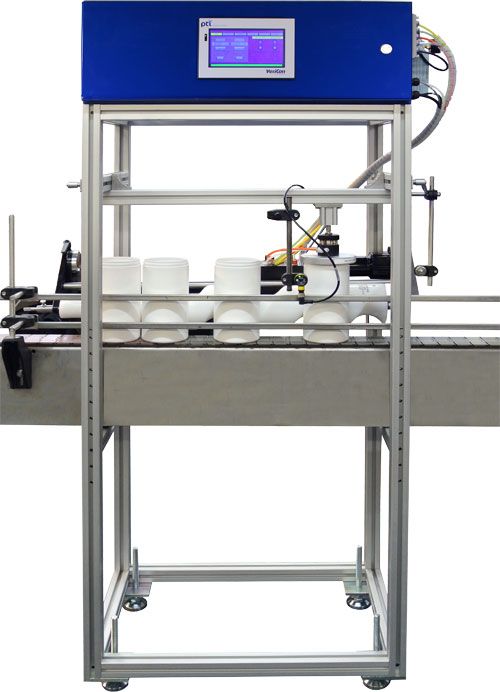

VeriCon 135+ Online bottle leak tester

VeriCon 135+ Online Bottle Leak Testing

The VeriCon 135+ is a single station continuous motion leak tester. The VeriCon 135+ offers the flexibility to work with different types of conveyor systems and container sizes.

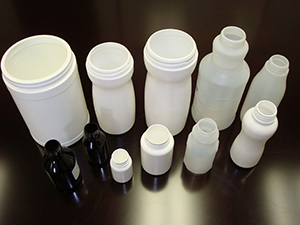

  • Container sizes: 1 oz. up to 64 oz. with different feedscrew designs
  • Single station tester with feedscrew for container handling and control

The VeriCon 135+ continuous motion leak test system offers several new-to-market upgrades and enhancements. View production performance and test results in the plant or at the corporate headquarter level, live in real time. The VeriCon 135+ offers increased leak test sensitivity with the capability to measure down to 200 microns, depending on container shape, size and line speed.

Benefits:

  • High resolution non-drifting pressure transducer for consistent leak detection
  • Auto learn mode
  • Data integration and data transfer
  • 24/7 operation
  • Very low maintenance
Vericon Technology:

The VeriCon 135+ leak test system utilizes pressure decay technology and features a new PLC with increased test sensitivity. During the test cycle, the container is filled with pressure to a certain level. The amount of pressure decay is monitored and measured which correlates to the presence of leaks within the container. The pass/fail result displays on the operator panel and the defective container is rejected from the line.

Specifications
Application Online continuous motion leak detection of bottles & containers
Container Handling Feedscrew for smooth handling and container control
Technology Pressure
Test Stations 1 Station
Bottle Size Range Up to 64 oz.
Hole Size Detection* Capable of finding 0.008" [200 microns], depending on container shape, size and line speed
Change over to Other Bottle/Container Sizes Minor Mechanical Adjustments or feedscrew change
Operator HMI Interface Large color touch screen panel
Mount Over Existing Conveyor Flexible, can be used with many different conveyor systems
PTI Integrated Conveyor Optional
Test Sensitivity Adjustment Yes
Test Result Data/Test Statistics Total pass/reject statistics
Auto Reject Mechanism Yes
Tester Frame Four-post heavy duty aluminum frame
Air 60-90 psi
Power 100-240 VAC; 50/60 cycles

PTI VeriCon 135+ Brochure

Leak tester for plastic bottles
VeriCon 172 online bottle leak testing VeriCon 172 online bottle leak testing

VeriCon 172 Online Bottle Leak Testing

Specifications

Application Continuous motion inspection with feedscrew for high speed applications
Technology Pressure or Vacuum*
Test Stations 2-4 Stations
Bottle Size Range Up to 32 oz.
Hole Size Detection Test performance depends on container specification, line speed, handling and required test sensitivity.
Change over to Other Bottle/Container Sizes Minor Mechanical Adjustments or Change Feedscrew
Operator Interface Color Touch Screen or 4-Line Display
Mount Over Existing Conveyor Yes
PTI Integrated Conveyor Optional
Test Sensitivity Adjustment Yes
Test Result Data/Test Statistics
  • Color Touch Screen - Detailed Pass/Reject statistics and result trends.
  • 4-Line Display - Total Pass/Reject statistics
Other Notable Features User friendly self-teach automates setup and overall operation
Tester Frame - Special Features Four-post heavy duty aluminum frame with central height adjustment
Options
  • Stack Light
  • Interface to upload programming data
Air 60-90 psi
Power 100-240 VAC; 50/60 cycles
* Pressure or Vacuum specification determined by container type and application to achieve optimum test performance.
Test results may vary according to application and package specifications.
