Leak Testing Autoinjectors –
Managing Risk in the Most Complex Combination Device Format

Most autoinjectors on the market today are based on familiar parenteral formats: 1 mL long syringes, 2.25 mL syringes, or cartridge-based systems. These products are exclusively liquid, sterile, and frequently largemolecule, demanding the highest levels of leak-test sensitivity to ensure sterility over the shelf life.

The risk profile of these products is amplified by patient use. Autoinjectors are often stored for extended periods, transported across variable environments, and relied upon in critical care scenarios. The opportunity for a defect to propagate into a critical failure is significant.

Early in development, CCI validation appropriately focuses on the inherent leak of the primary container. Methods such as helium leak detection and high-voltage leak detection (HVLD) are well-suited for this stage. These techniques excel at evaluating the design space of the syringe itself, helping teams understand material selection, stopper performance, seal integrity, and intrinsic barrier properties.

At this point, the syringe is a relatively simple system comprising of three to four critical components. Testing the standalone syringe provides high-value insight into container design robustness and establishes a baseline level of integrity performance. However, this testing answers only one question: Is the container design fundamentally sound?

It does not address the far more consequential question that emerges later in the process: Does the final assembled autoinjector reliably maintain that integrity?

Once the syringe is integrated into an autoinjector body, the risk landscape changes dramatically. The autoinjector housing often acts as a physical protector, shielding the primary container from direct mechanical damage. However, the assembly process itself introduces the greatest risk to integrity.

A fully assembled autoinjector can contain an order of magnitude more components than the syringe alone. Springs, plungers, needle mechanisms, safety locks, and alignment features all interact in a tightly controlled mechanical stack-up. Each interface introduces tolerance variation, stress, and potential misalignment. Each assembly step introduces opportunity for damage, contamination, or latent defect creation. The complexity of the process is laden with controls and measures, all subject to their own calibration standards and deviation.

Many of the most impactful integrity risks are not design-related - they are process-related. Micro-cracks,stopper deformation, needle-shield interference, or unintended stress on the container often occur during high-speed automated assembly. These risks cannot be meaningfully assessed by testing the syringe in isolation.

Validating the syringe alone predominantly assures that the container can perform. Testing the assembled autoinjector validates that the entire manufacturing process performs.

From a quality and risk-management perspective, inspecting the fully assembled autoinjector is the most logical and defensible approach. It captures the cumulative effect of component variability, process tolerances,and mechanical interactions, exactly the conditions under which defects are most likely to be introduced.

A fully assembled autoinjector can contain an order of magnitude more components than the syringe alone. Springs, plungers, needle mechanisms, safety locks, and alignment features all interact in a tightly controlled mechanical stack-up. Each interface introduces tolerance variation, stress, and potential misalignment. Each assembly step introduces opportunity for damage, contamination, or latent defect creation. The complexity of the process is laden with controls and measures, all subject to their own calibration standards and deviation.

Importantly, the technologies used earlier in development are no longer practical at this stage. Helium leak detection and HVLD face significant limitations when applied to assembled autoinjectors. The presence of non-conductive housings, complex geometries, internal shielding, and secondary materials renders these techniques either ineffective or operationally impractical.

This reality leaves vacuum-based methods as the most viable deterministic option for finished-device inspection.

Vacuum decay has long been recognized as a practical and reliable method for non-destructive leak testing of finished pharmaceutical packages. It is inherently non-invasive, compatible with sealed systems, and wellsuited to inline or at-line inspection of assembled devices.

For autoinjectors, vacuum decay offers clear advantages: it evaluates the entire system, does not rely on tracer gases, and directly assesses the presence of a leak path. However, the application is not without challenges.

Autoinjectors tend to create greater test chamber volumes due to their size and geometry, increasing headspace and thus reducing sensitivity. More importantly, the products they contain are often viscous, proteinaceous, or highly concentrated, which introduces complex physical behavior under vacuum.

In performing vacuum decay on a liquid filled application, test pressures drop below the vapor pressure of the product. The evaporating liquid at the defect site creates the measurable change in pressure. In autoinjectors, detecting this evaporation is fleeting. The opportunity to detect the flow is muted by the added chamber volume, and the escaping product can quickly plug the defect, particularly as viscosity and molecular complexity increase. Traditional vacuum decay methods, which rely on longer test windows of 10–15 seconds, often miss these transient events entirely.

As a result, autoinjectors have historically been viewed as one of the most challenging formats to inspect with sufficient sensitivity using conventional vacuum decay alone.

The unique challenge of autoinjector leak testing is not a lack of suitable physics, but the lack of speed. The most critical information often exists in the first moments of the test, before a defect self-seals.

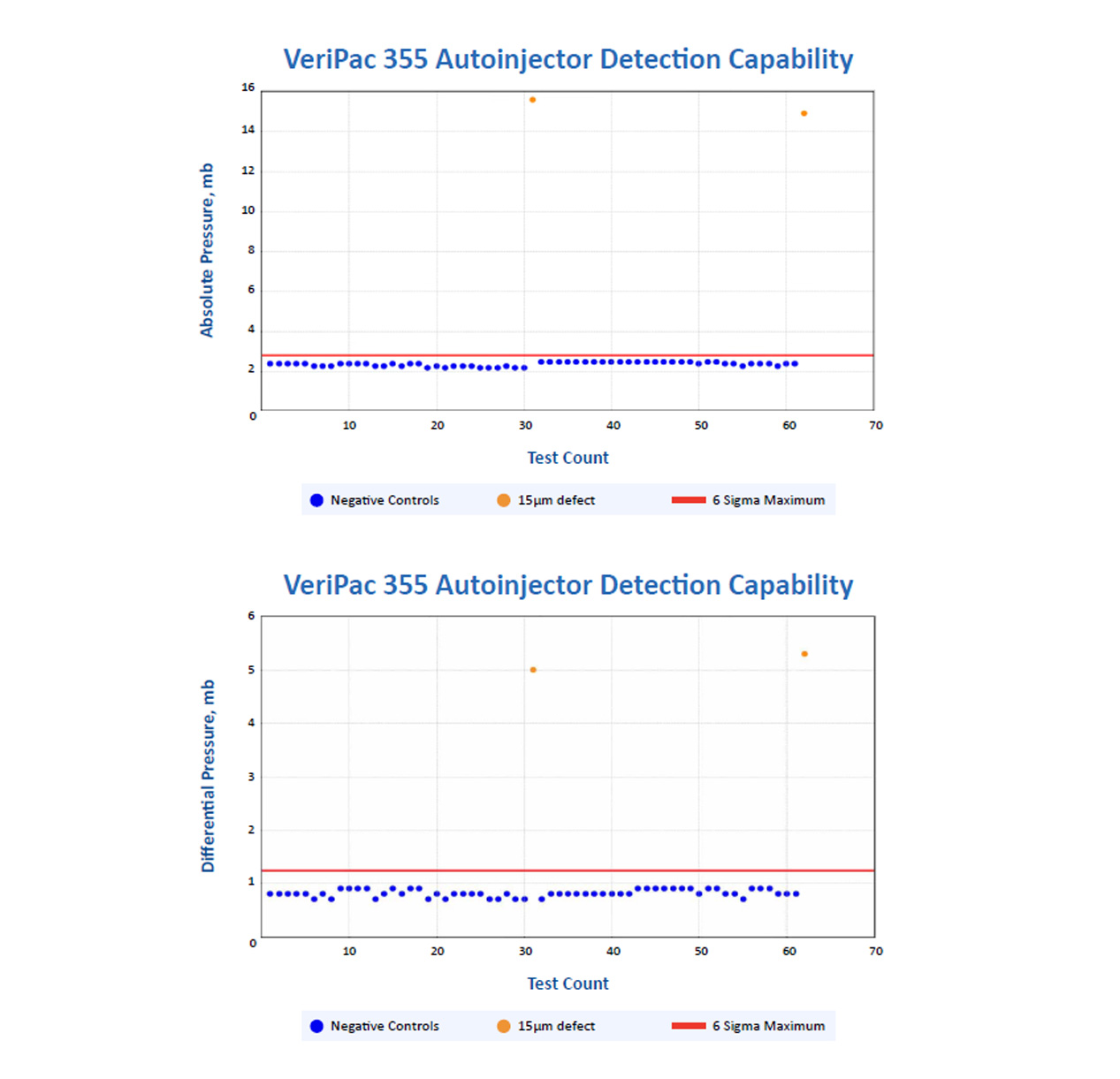

Next-generation vacuum-based approaches, such as Dynamic Leak Testing (DLT), are designed to operate in the most information-rich portion of the inspection cycle. Rather than relying on extended test durations, these methods prioritize early-stage measurement capability and apply advanced algorithms to amplify measurable signal in defective samples. The novel approach creates a statistical separation between good and defective samples well beyond the four sigma limits often applied to defect detection.

This approach enables more reliable detection of container integrity failures in applications where conventional vacuum decay methods face inherent physical limitations.

For autoinjectors, this capability aligns directly with the risk profile of the device. It enables deterministic inspection of the fully assembled system, addresses the physical realities of modern biologics, and provides a practical path forward where traditional methods struggle.

In the end, effective autoinjector leak testing demands alignment between risk, physics, and inspection strategy. Testing the final assembled device is essential. As autoinjector designs continue to grow in complexity, inspection technologies must evolve to meet them at the speed where defects actually reveal themselves.
