What Is Dye Ingress Testing?

Dye ingress testing, also called dye penetration testing, is a qualitative and probabilistic method used to assess container closure integrity. Test samples are submerged in a colored dye solution while vacuum, pressure, or a combination of conditions is applied, then the package is opened or examined to determine whether dye has entered through a defect or leak path. Dye ingress is a traditional test method and is not a PTI technology. PTI provides deterministic inspection technologies and analytical services that support an application-appropriate CCI strategy, including as an alternative to dye ingress.

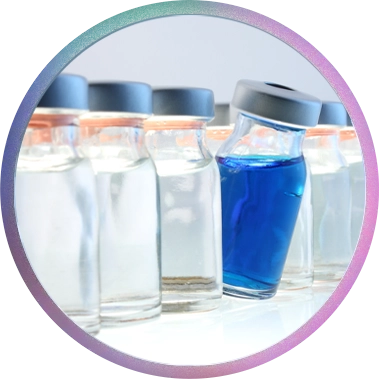

A visible dye signal is read as evidence of package leakage. A negative result does not necessarily confirm the absence of a defect: it can also mean the test conditions did not create and preserve the pressure differential needed to carry a detectable quantity of dye through the defect. Because samples are exposed to dye and typically opened for inspection, the test is destructive and the sample cannot be retested.

Result performance for dye ingress depends on several variables:

  • Product viscosity, fill volume, and available headspace
  • Defect size, geometry, and tortuosity
  • Applied vacuum or pressure and exposure time
  • Package flexibility and component movement
  • Analyst interpretation and inspection conditions

How Does Dye Ingress Testing Work?

For dye ingress to identify a defect in a liquid-filled package, three stages have to succeed in sequence. First, a sufficient pressure differential must form between the inside and outside of the package. Second, that differential must hold long enough to move dye through the leak path and into the package. Third, enough dye must enter the package to be observed visually or detected by an analytical measurement.

If any one of these stages fails, a package that contains a defect can still produce a negative result. Method performance is therefore governed by the combination of defect size and geometry, package design, product properties, test parameters, and the detection technique.

Dye Ingress Testing for Prefilled Syringes and Parenteral Packaging

Prefilled syringes illustrate the coupled physical and mechanical limits of dye ingress testing. During vacuum exposure, fluid or gas has to leave the syringe through a defect to establish an internal pressure deficit, and when the chamber returns to atmospheric pressure, that differential has to remain available to draw dye back through the same pathway.

Product viscosity can restrict flow through a micro-defect, reducing the pressure deficit created in the first stage. Increasing the applied differential can improve fluid movement, but it can also move the syringe plunger, which relieves the pressure differential needed to draw dye into the syringe. This operating window narrows further as product viscosity, syringe diameter, or fill volume increases, so modern biologic formulations and larger syringe formats warrant case-by-case evaluation, even where a historical dye ingress protocol already exists.

Download



Advantages and Limitations of Dye Ingress Testing

Advantages
  • Real time inspection data
  • Familiar, conceptually straightforward test procedure
  • Relatively low initial equipment cost
  • Visible indication of dye entry when ingress occurs
Limitations
  • Probabilistic and generally qualitative, with results subject to analyst interpretation
  • Destructive to the test sample; does not support non-destructive retesting
  • Does not provide a direct, quantitative leak-rate measurement
  • Sensitive to product viscosity, fill volume, headspace, and package mechanics
  • Limited sensitivity and repeatability for small defects
  • Difficult to develop and validate for complex or high-risk parenteral systems
  • Less suited to automated data capture and scalable production inspection

Regulatory Perspective and Deterministic Alternatives

USP General Chapter <1207> distinguishes probabilistic methods, including dye ingress, from deterministic package integrity test methods, directing method selection toward sound scientific understanding of the specific product-package system. The FDA's August 2026 draft guidance, Container Closure Systems for Human Drugs and Biological Products, lists dye ingress among commonly used CCIT methods while also encouraging innovative, advanced, and deterministic integrity testing technologies, noting that probabilistic methods can be acceptable but are often difficult to design, develop, validate, and implement.

PTI offers deterministic technologies that directly and objectively evaluate package integrity across pharmaceutical, biologic, and medical device applications.

Vacuum Decay detects package leakage by measuring pressure change within a controlled test chamber. It is non-destructive and quantitative, recognized in ASTM F2338, and applicable to many rigid, semi-rigid, and flexible package formats.

HVLD uses electrical conductivity to identify pinholes, cracks, and other defects in liquid-filled, non-conductive packages, and is well suited to conductive products, including viscous and large-molecule formulations.

Helium Leak Detection uses mass spectrometry to measure helium tracer gas flow through a container closure system, providing highly sensitive, quantitative data for package development, component evaluation, and CCI characterization.
